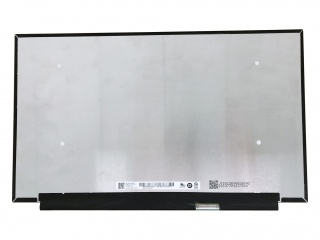

| Onderdeel nommer | B156HAN10.1 |
| Handelsmerk | AUO |
| Grootte | 15.6 |
| Toepassing | Laptop Gaming |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 1.07B |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | AUO |
| paneel model | B156HAN10.1 |
| paneel grootte | 15.6" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1920(RGB)×1080, FHD, 141PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 344.16(W)×193.59(H) mm |
| ring opening | - |
| omtrek grootte | 350.66(W)×216.15(H) ×3(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 500 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | AHVA, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 9 (Typ.)(Tr+Td); 3 (Typ.)(G to G)(OD) |
| kleure vertoon | 1.07B 100% Adobe RGB |
| tipe lamp | WLED , 15K hours , With LED Driver |
| frekwensie | 144Hz |
| raakskerm | Without |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| aansoek | Laptop Gaming |
| sein koppelvlak | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
