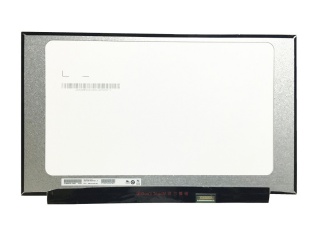

| Onderdeel nommer | B156HAN02.4 |
| Handelsmerk | AUO |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | AUO |
| paneel grootte | 15.6" |
| resolusie | 1920(RGB)×1080, FHD, 141PPI |
| vertoon area | 344.16(W)×193.59(H) mm |
| omtrek grootte | 350.66(W)×216.15(H) ×3.2(D) mm |
| helderheid | 300 cd/m² (Typ.) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 262K 72% NTSC |
| frekwensie | 60Hz |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| sein koppelvlak | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneel model | B156HAN02.4 (AUO24ED) |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Antiglare |
| kontras verhouding | 800:1 (Typ.) (TM) |
| vertoonmodus | AHVA, Normally Black, Transmissive |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| tipe lamp | WLED , 15K hours , With LED Driver |
| raakskerm | Without |
| aansoek | Laptop |
| B156HAK01.0 | AUO | 15.6 | 1920×1080 |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| B156HTN03.3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V0 | AUO | 15.6 | 1920×1080 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
