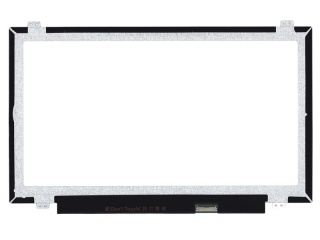

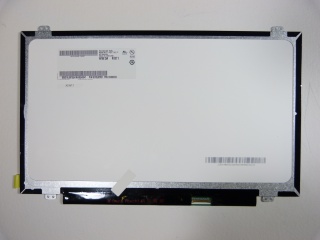

| Onderdeel nommer | B140HTN01.F |
| Handelsmerk | AUO |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | AUO |
| paneel grootte | 14.0" |
| resolusie | 1920(RGB)×1080, FHD, 157PPI |
| vertoon area | 309.14(W)×173.89(H) mm |
| omtrek grootte | 320.4(W)×205.1(H) ×3(D) mm |
| helderheid | 220 cd/m² (Typ.) |
| kykhoek | 45/45/15/35 (Typ.)(CR≥10) |
| beste uitsig op | 6 o'clock |
| kleure vertoon | 262K 45% NTSC |
| frekwensie | 60Hz |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| paneel model | B140HTN01.F (AUO1F3D) |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| kontras verhouding | 400:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 8 (Typ.)(Tr+Td) |
| tipe lamp | WLED , 15K hours , With LED Driver |
| raakskerm | Without |
| aansoek | Laptop |
| B140HAN01.0 | AUO | 14.0 | 1920×1080 |
| B140HAN01.1 | AUO | 14.0 | 1920×1080 |
| B140HAN01.2 | AUO | 14.0 | 1920×1080 |
| B140HAN01.3 | AUO | 14.0 | 1920×1080 |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| B140HAT02.0 | AUO | 14.0 | 1920×1080 |
| B140HTN01.1 | AUO | 14.0 | 1920×1080 |
| B140HTN01.3 | AUO | 14.0 | 1920×1080 |
| BT140GW01 V.0 | Innolux | 14.0 | 1366×768 |
| LTN140AT07-B01 | Samsung | 14.0 | 1366×768 |
