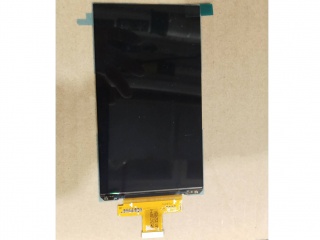

| Onderdeel nommer | AMS567JD09 |
| Handelsmerk | SAMSUNG |
| Grootte | 5.7 |
| Toepassing | Mobile Phone HMD VR |
| Resolusie | 1440×2560 |
| Samestelling | AM-OLED , OLED |
| Helderheid | |
| CR | - |
| Kleure | 16.7M |
| Agterlig | self |
| Koppelvlak | |
| paneel handelsmerk | SAMSUNG |
| paneel grootte | 5.7" |
| resolusie | 1440(RG/BG)×2560, Quad-HD, 423PPI |
| vertoon area | 70.56(W)×125.44(H) mm |
| omtrek grootte | 73.2(W)×132.76(H) mm |
| helderheid | 120 cd/m² (Typ.) |
| kykhoek | - |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 103% NTSC |
| frekwensie | 60Hz |
| gewig | - |
| paneel model | AMS567JD09 |
| paneel tipe | AM-OLED , OLED |
| pixel formaat | RG/BG PenTile |
| ring opening | - |
| oppervlak | Hard coating |
| kontras verhouding | - |
| vertoonmodus | - |
| reaksie tyd | - |
| tipe lamp | self |
| raakskerm | Without |
| aansoek | Mobile Phone HMD VR AR |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| EL320.240.36 AG | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB NE CC | PLANAR | 5.7 | 320×240 |
| G057VTN01.1 | AUO | 5.7 | 640×480 |
| KG057QV1CA-G020 | Kyocera | 5.7 | 320×240 |
| LM32004 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC12 | SHARP | 5.7 | 320×240 |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
| TM057QDHG04 | Tianma | 5.7 | 640×480 |
