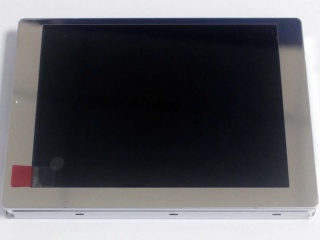

| Onderdeel nommer | AM-640480VSTZQW-20H |
| Handelsmerk | AMPIRE |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 640×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | AMPIRE |
| diagonale grootte | 5.7 inch |
| pixel formaat | 640(RGB)×480 [VGA] 141PPI |
| aktiewe area | 115.2(H)×86.4(V) mm |
| ring area | 118.2(H)×89.4(V) mm |
| helderheid | 400 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| ondersteun kleur | 262K 60% NTSC |
| gewig | - |
| raamkoers | 60Hz |
| model | AM-640480VSTZQW-20H |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 144(H)×104.6(V) ×12.6(D) mm |
| behandeling | - |
| kontras verhouding | 1200:1 (Typ.) (TM) |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| Ligbron | WLED [3S7P] , 50K hours , With LED Driver |
| ontwerp vir | Industrial |
| raakpaneel | Without |
