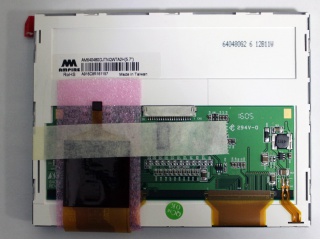

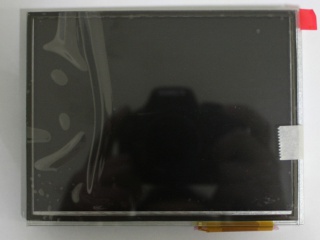

| Onderdeel nommer | AM-640480GJTNQW-TA2H |
| Handelsmerk | AMPIRE |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 640×480 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 250:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | AMPIRE |
| paneel model | AM-640480GJTNQW-TA2H |
| paneel grootte | 5.7" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 640(RGB)×480, VGA, 141PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 115.2(W)×86.4(H) mm |
| ring opening | - |
| omtrek grootte | 127(W)×98.43(H) ×10.88(D) mm |
| oppervlak | - |
| helderheid | 425 cd/m² (Typ.) |
| kontras verhouding | 250:1 (Typ.) (TM) |
| kykhoek | 70/70/50/50 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | - |
| reaksie tyd | 50 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 50% NTSC |
| tipe lamp | WLED , 20K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | PCAP |
| paneel gewig | - |
| aansoek | Industrial |
| sein koppelvlak | LVDS (1 ch, 8-bit) , 20 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-31H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-A0H | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| AM-640480GFTNQW-T01H-L | AMPIRE | 5.7 | 640×480 |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| G057VN01 V1 | AUO | 5.7 | 640×480 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
