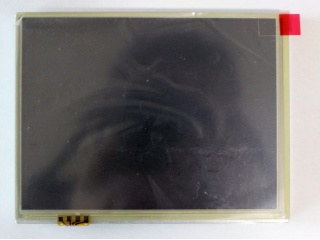

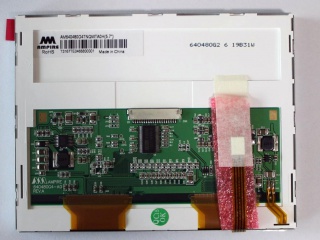

| Onderdeel nommer | AM-640480G4TNQW-TA0H |
| Handelsmerk | AMPIRE |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 640×480 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 250:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| vervaardiger | AMPIRE |
| model naam | AM-640480G4TNQW-TA0H |
| skerm grootte | 5.7 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 640(RGB)×480 (VGA) 141PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 115.2 × 86.4 (H×V) |
| buitelyn (mm) | 127 × 98.43 × 9.1 (H×V×D) |
| ring area (mm) | 118.0 × 89.2 (H×V) |
| behandeling | - |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 250 : 1 (Typ.) (TM) |
| kykhoek | 70/70/50/50 (Typ.)(CR≥10) |
| reaksie | 50 (Typ.)(Tr+Td) ms |
| goeie uitsig by | 12 o'clock |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 262K 50% NTSC |
| agterlig | WLED , 20K hours , With LED Driver |
| massa | - |
| gebruik vir | Industrial |
| herlaaitempo | 60Hz |
| raakskerm | 4-wire Resistive Touch |
| sein tipe | LVDS (1 ch, 6-bit) , Connector 20 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
