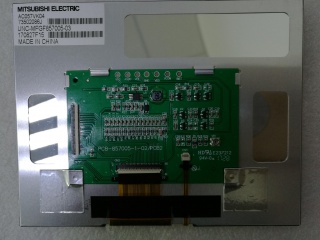

| Onderdeel nommer | AC057VK04 |
| Handelsmerk | Mitsubishi |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 640×480 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 600:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| paneel handelsmerk | Mitsubishi |
| paneel model | AC057VK04 |
| paneel grootte | 5.7" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 640(RGB)×480, VGA, 141PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 115.2(W)×86.4(H) mm |
| ring opening | 118.1(W)×89.3(H) mm |
| omtrek grootte | 127(W)×100(H) mm |
| oppervlak | Antiglare, Hard coating (2H) |
| helderheid | 520 cd/m² (Typ.) |
| kontras verhouding | 600:1 (Typ.) (TM) |
| kykhoek | 80/80/80/60 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | 6 o'clock |
| reaksie tyd | 4/12 (Typ.)(Tr/Td) |
| kleure vertoon | 262K 48% NTSC |
| tipe lamp | WLED , 50K hours , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 90.0g |
| aansoek | Industrial |
| sein koppelvlak | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
