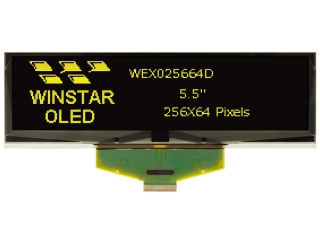

| Onderdeel nommer | WEX025664DL |
| Handelsmerk | Winstar |
| Grootte | 5.5 |
| Toepassing | Industrial Handheld |
| Resolusie | 256×64 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Yellow) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| paneel handelsmerk | Winstar |
| paneel model | WEX025664DL |
| paneel grootte | 5.5" |
| paneel tipe | PM-OLED, OLED |
| resolusie | 256×64, 47PPI |
| pixel formaat | Rectangle |
| vertoon area | 135.65(W)×33.89(H) mm |
| ring opening | 137.65(W)×35.89(H) mm |
| omtrek grootte | 146(W)×45(H) mm |
| oppervlak | - |
| kykhoek | - |
| vertoonmodus | - |
| beste uitsig op | Symmetry |
| reaksie tyd | - |
| kleure vertoon | Mono(Yellow) |
| tipe lamp | self |
| frekwensie | - |
| raakskerm | Without |
| bestuurder ic | TAB Built-in SSD1322UR1 |
| paneel gewig | - |
| aansoek | Industrial Handheld & PDA |
| sein koppelvlak | CPU/SPI , 30 pins FPC |
| insetspanning | 3.0V (Typ.) |
| omgewing | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
