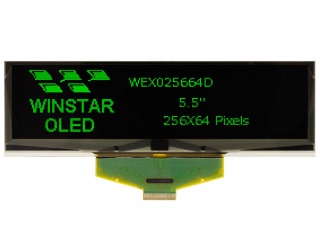

| Onderdeel nommer | WEX025664DG |
| Handelsmerk | Winstar |
| Grootte | 5.5 |
| Toepassing | Industrial Handheld |
| Resolusie | 256×64 |
| Samestelling | PM-OLED , OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Green) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| handelsmerk | Winstar |
| diagonale grootte | 5.5 inch |
| pixel formaat | 256×64 47PPI |
| aktiewe area | 135.65(H)×33.89(V) mm |
| ring area | 137.65(H)×35.89(V) mm |
| kyk rigting | Symmetry |
| kykhoek | - |
| ondersteun kleur | Mono(Green) |
| gewig | - |
| raamkoers | - |
| d-ic detail | TAB Built-in SSD1322UR1 |
| koppelvlak tipe | CPU/SPI , 30 pins FPC |
| kragtoevoer | 3.0V (Typ.) |
| omgewing | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
| model | WEX025664DG |
| tipe | PM-OLED , OLED |
| konfigurasie | Rectangle |
| buitelyn dof. | 146(H)×45(V) mm |
| behandeling | - |
| reaksie tyd | - |
| bedryfsmodus | - |
| Ligbron | self |
| ontwerp vir | Industrial Handheld & PDA |
| raakpaneel | Without |
| BS055FHE-N30-6Q00 | BOE | 5.5 | 1080×1920 |
| CLAF055WB41 TXX | CPT | 5.5 | 720×1280 |
| LM6Q35 | SHARP | 5.5 | 320×240 |
| LPM055A138A | JDI | 5.5 | 1440×2560 |
| LQ055T3SX04 | SHARP | 5.5 | 1080×1920 |
| LQ055W1GC01 | SHARP | 5.5 | 1024×600 |
| LS055R1SX03 | SHARP | 5.5 | 1440×2560 |
| LS055R1SX04 | SHARP | 5.5 | 1440×2560 |
| LS055T1SX01 | SHARP | 5.5 | 1080×1920 |
| NL3224BC35-22 | NLT | 5.5 | 320×240 |
