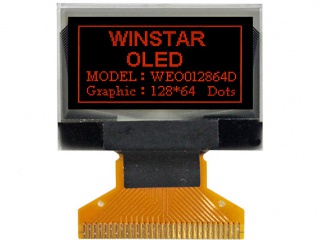

| Onderdeel nommer | WEO012864DR |
| Handelsmerk | Winstar |
| Grootte | 0.96 |
| Toepassing | Handheld & PDA H |
| Resolusie | 128×64 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Red) |
| Agterlig | self |
| Koppelvlak | 8-bit |
| paneel handelsmerk | Winstar |
| paneel model | WEO012864DR |
| paneel grootte | 0.96" |
| paneel tipe | PM-OLED, OLED |
| resolusie | 128×64, 149PPI |
| pixel formaat | Rectangle |
| vertoon area | 21.738(W)×10.858(H) mm |
| ring opening | 23.938(W)×12.058(H) mm |
| omtrek grootte | 26.7(W)×19.26(H) ×1.81(D) mm |
| oppervlak | - |
| kykhoek | - |
| vertoonmodus | - |
| beste uitsig op | Symmetry |
| reaksie tyd | - |
| kleure vertoon | Mono(Red) |
| tipe lamp | self |
| frekwensie | - |
| raakskerm | Without |
| bestuurder ic | COG Built-in SSD1306BZ |
| paneel gewig | - |
| aansoek | Handheld & PDA Healthcare Instruments & Meters |
| sein koppelvlak | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 30 pins FPC |
| insetspanning | 3.0V (Typ.) |
| IROP018-010-0128064-W | Other | 0.96 | 128×64 |
| L3P10Y-81G00 | Epson | 0.96 | 1400×1050 |
| OEL9M0083-B-E | Other | 0.96 | 128×64 |
| OEL9M0083-G-E | Other | 0.96 | 128×64 |
| OEL9M0083-R-E | Other | 0.96 | 128×64 |
| OEL9M0083-W-E | Other | 0.96 | 128×64 |
| OEL9M0083-Y-E | Other | 0.96 | 128×64 |
| RGS10128064WR010 | RiTdisplay | 0.96 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
