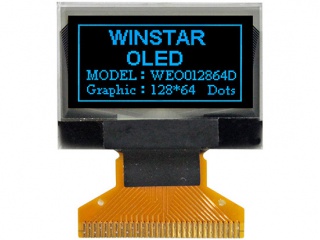

| Onderdeel nommer | WEO012864DB |
| Handelsmerk | Winstar |
| Grootte | 0.96 |
| Toepassing | Handheld & PDA H |
| Resolusie | 128×64 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Blue) |
| Agterlig | self |
| Koppelvlak | |
| handelsmerk | Winstar |
| model | WEO012864DB |
| diagonale grootte | 0.96 inch |
| tipe | PM-OLED, OLED |
| pixel formaat | 128×64 149PPI |
| konfigurasie | Rectangle |
| aktiewe area | 21.738(H)×10.858(V) mm |
| buitelyn dof. | 26.7(H)×19.26(V) ×1.81(D) mm |
| ring area | 23.938(H)×12.058(V) mm |
| behandeling | - |
| kyk rigting | Symmetry |
| reaksie tyd | - |
| kykhoek | - |
| bedryfsmodus | - |
| ondersteun kleur | Mono(Blue) |
| Ligbron | self |
| gewig | - |
| ontwerp vir | Handheld & PDA Healthcare Instruments & Meters |
| raamkoers | - |
| raakpaneel | Without |
| 3.0V (Typ.) |
| IROP018-010-0128064-W | Other | 0.96 | 128×64 |
| L3P10Y-81G00 | Epson | 0.96 | 1400×1050 |
| OEL9M0083-G-E | Other | 0.96 | 128×64 |
| OEL9M0083-R-E | Other | 0.96 | 128×64 |
| OEL9M0083-W-E | Other | 0.96 | 128×64 |
| OEL9M0083-Y-E | Other | 0.96 | 128×64 |
| RGS10096096WR001 | RiTdisplay | 0.96 | 96×96 |
| RGS10128064WR010 | RiTdisplay | 0.96 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
