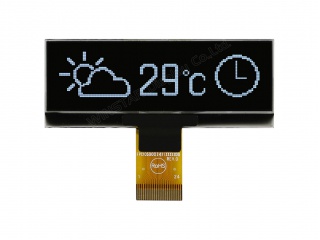

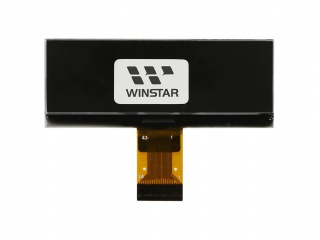

| Onderdeel nommer | WEO012832AW |
| Handelsmerk | Winstar |
| Grootte | 2.2 |
| Toepassing | Handheld & PDA Instr |
| Resolusie | 128×32 |
| Samestelling | OLED , PM-OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(White) |
| Agterlig | self |
| Koppelvlak | 8-bit |
| vervaardiger | Winstar |
| skerm grootte | 2.2 inch |
| pixel nommer | 128×32 59PPI |
| aktiewe area (mm) | 55.018 × 13.098 (H×V) |
| ring area (mm) | 57.02 × 15.1 (H×V) |
| kykhoek | - |
| goeie uitsig by | Symmetry |
| kleurdiepte | Mono(White) |
| massa | - |
| herlaaitempo | - |
| bestuurder ic lys | Built-in COG SSD1305Z |
| sein tipe | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 24 pins FPC |
| spanningstoevoer | 3.0V (Typ.) |
| model naam | WEO012832AW |
| tipe skerm | OLED , PM-OLED |
| reëling | Rectangle |
| buitelyn (mm) | 62 × 24 × 2.35 (H×V×D) |
| behandeling | - |
| reaksie | - |
| werksmodus | - |
| agterlig | self |
| gebruik vir | Handheld & PDA Instruments & Meters |
| raakskerm | Without |
