| Onderdeel nommer | WEO002002AS |
| Handelsmerk | Winstar |
| Grootte | 2.9 |
| Toepassing | Instruments & Me |
| Resolusie | 20×26 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | 2000:1 |
| Kleure | Mono(Blue) |
| Agterlig | self |
| Koppelvlak | 8-bit |
| paneel handelsmerk | Winstar |
| paneel model | WEO002002AS |
| paneel grootte | 2.9" |
| paneel tipe | PM-OLED, OLED |
| vertoon formaat | 20 characters × 2 lines, 6PPI |
| lettertipe formaat | 5×8 dots |
| karakter grootte | 3.22×5.57(W×H) mm |
| karakter toonhoogte | 3.7×5.95(W×H) mm |
| vertoon area | 73.52(W)×11.52(H) mm |
| ring opening | 75.32(W)×13.52(H) mm |

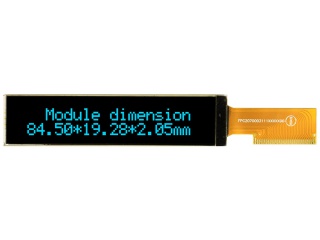

| omtrek grootte | 84.5(W)×19.2(H) ×2.15(D) mm |
| oppervlak | - |
| helderheid | - |
| kontras verhouding | 2000:1 (Typ.) (TM) |
| kykhoek | 88/88/88/88 |
| vertoonmodus | - |
| beste uitsig op | Symmetry |
| reaksie tyd | 0.01 (Typ.) |
| kleure vertoon | Mono(Blue) |
| tipe lamp | self |
| frekwensie | - |
| raakskerm | Without |
| bestuurder ic | COG Built-in SSD1311M1Z |
| paneel gewig | - |
| aansoek | Instruments & Meters |
| sein koppelvlak | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| insetspanning | 3.3/5.0V (Typ.)(VDD) |
