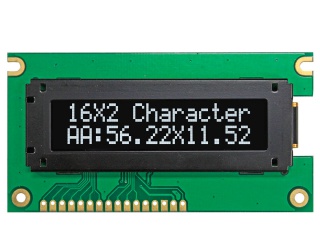

| Onderdeel nommer | WEO001602GW |
| Handelsmerk | Winstar |
| Grootte | 2.3 |
| Toepassing | Instruments & Me |
| Resolusie | 5×8 |
| Samestelling | OLED , PM-OLED |
| Helderheid | |
| CR | 2000:1 |
| Kleure | Mono(White) |
| Agterlig | self |
| Koppelvlak | 8-bit |
| vervaardiger | Winstar |
| model naam | WEO001602GW |
| skerm grootte | 2.3 inch |
| tipe skerm | OLED , PM-OLED |
| char nommer | 16 characters × 2 lines 7PPI |
| char-formaat | 5×8 dots |
| char pitch (mm) | 3.55×5.95 (H×V) |
| char grootte (mm) | 2.97×5.57 (H×V) |
| aktiewe area (mm) | 56.22 × 11.52 (H×V) |
| buitelyn (mm) | 79 × 44 × 9.67 (H×V×D) |
| ring area (mm) | 58.22 × 13.52 (H×V) |
| behandeling | - |
| helderheid | - |
| kontras verhouding | 2000 : 1 (Typ.) (TM) |
| kykhoek | 88/88/88/88 |
| reaksie | 0.01 (Typ.) ms |
| goeie uitsig by | Symmetry |
| werksmodus | - |
| kleurdiepte | Mono(White) |
| agterlig | self |
| massa | - |
| gebruik vir | Instruments & Meters |
| herlaaitempo | - |
| raakskerm | Without |
| bestuurder ic lys | Built-in COG SSD1311M1Z |
| sein tipe | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| spanningstoevoer | 3.3/5.0V (Typ.)(VDD) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
