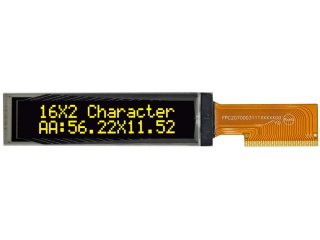

| Onderdeel nommer | WEO001602CL |
| Handelsmerk | Winstar |
| Grootte | 2.3 |
| Toepassing | Instruments & Me |
| Resolusie | 16×27 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | 2000:1 |
| Kleure | Mono(Yellow) |
| Agterlig | self |
| Koppelvlak | 8-bit |
| paneel handelsmerk | Winstar |
| paneel model | WEO001602CL |
| paneel grootte | 2.3" |
| paneel tipe | PM-OLED, OLED |
| vertoon formaat | 16 characters × 2 lines, 7PPI |
| lettertipe formaat | 5×8 dots |
| karakter grootte | 2.97×5.57(W×H) mm |
| karakter toonhoogte | 3.55×5.95(W×H) mm |
| vertoon area | 56.22(W)×11.52(H) mm |
| ring opening | 58.22(W)×13.52(H) mm |
| omtrek grootte | 68.5(W)×17.5(H) ×2.25(D) mm |
| oppervlak | - |
| helderheid | - |
| kontras verhouding | 2000:1 (Typ.) (TM) |
| kykhoek | 88/88/88/88 |
| vertoonmodus | - |
| beste uitsig op | Symmetry |
| reaksie tyd | 0.01 (Typ.) |
| kleure vertoon | Mono(Yellow) |
| tipe lamp | self |
| frekwensie | - |
| raakskerm | Without |
| bestuurder ic | COG Built-in SSD1311M1Z |
| paneel gewig | - |
| aansoek | Instruments & Meters |
| sein koppelvlak | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 33 pins FPC |
| insetspanning | 3.3/5.0V (Typ.)(VDD) |
