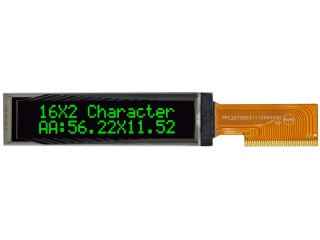

| Onderdeel nommer | WEO001602CG |
| Handelsmerk | Winstar |
| Grootte | 2.3 |
| Toepassing | Instruments & Me |
| Resolusie | 5×8 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | 2000:1 |
| Kleure | Mono(Green) |
| Agterlig | self |
| Koppelvlak | 8-bit |
| handelsmerk | Winstar |
| model | WEO001602CG |
| diagonale grootte | 2.3 inch |
| tipe | PM-OLED, OLED |
| char-formaat | 5×8 dots |
| skrifgrootte | 2.97×5.57 mm |
| font toonhoogte | 3.55×5.95 mm |
| aktiewe area | 56.22(H)×11.52(V) mm |
| buitelyn dof. | 68.5(H)×17.5(V) ×2.25(D) mm |
| ring area | 58.22(H)×13.52(V) mm |
| behandeling | - |
| helderheid | - |
| kontras verhouding | 2000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 0.01 (Typ.) |
| kykhoek | 88/88/88/88 |
| bedryfsmodus | - |
| ondersteun kleur | Mono(Green) |
| Ligbron | self |
| gewig | - |
| ontwerp vir | Instruments & Meters |
| raamkoers | - |
| raakpaneel | Without |
| d-ic detail | COG Built-in SSD1311M1Z |
| koppelvlak tipe | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 33 pins FPC |
| kragtoevoer | 3.3/5.0V (Typ.)(VDD) |
