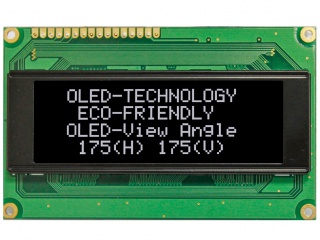

| Onderdeel nommer | WEH002004AW |
| Handelsmerk | Winstar |
| Grootte | 2.9 |
| Toepassing | Instruments & Meters |
| Resolusie | 5×8 |
| Samestelling | PM-OLED , OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(White) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| handelsmerk | Winstar |
| diagonale grootte | 2.9 inch |
| char-formaat | 5×8 dots |
| skrifgrootte | 2.9×4.75 mm |
| aktiewe area | 70.16(H)×20.95(V) mm |
| ring area | 77(H)×32(V) mm |
| kyk rigting | Symmetry |
| kykhoek | - |
| ondersteun kleur | Mono(White) |
| gewig | - |
| raamkoers | - |
| d-ic detail | COB Built-in WS0010 |
| koppelvlak tipe | CPU/SPI , 16 pins Pad |
| kragtoevoer | 5.0V (Typ.) |
| model | WEH002004AW |
| tipe | PM-OLED , OLED |
| font toonhoogte | 3.54×5.4 mm |
| buitelyn dof. | 98(H)×60(V) ×10(D) mm |
| behandeling | - |
| reaksie tyd | - |
| bedryfsmodus | - |
| Ligbron | self |
| ontwerp vir | Instruments & Meters |
| raakpaneel | Without |
| ACX399CMP-7 | SONY | 2.9 | 640×360 |
| AL2002A | Other | 2.9 | 20×2 |
| LS029B4DN01 | SHARP | 2.9 | 240×456 |
| SC2002A | Other | 2.9 | 20×2 |
| SC2004C | Other | 2.9 | 20×4 |
| SG12864A | Other | 2.9 | 128×64 |
