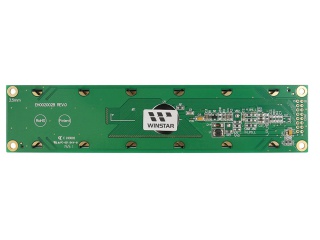

| Onderdeel nommer | WEH002004AB |
| Handelsmerk | Winstar |
| Grootte | 2.9 |
| Toepassing | Instruments & Me |
| Resolusie | 5×8 |
| Samestelling | OLED, PM-OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Blue) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| vervaardiger | Winstar |
| model naam | WEH002004AB |
| skerm grootte | 2.9 inch |
| tipe skerm | OLED, PM-OLED |
| char nommer | 20 characters × 4 lines 7PPI |
| char-formaat | 5×8 dots |
| char pitch (mm) | 3.54×5.4 (H×V) |
| char grootte (mm) | 2.9×4.75 (H×V) |
| aktiewe area (mm) | 70.16 × 20.95 (H×V) |
| buitelyn (mm) | 98 × 60 × 10 (H×V×D) |
| ring area (mm) | 77 × 32 (H×V) |
| behandeling | - |
| kykhoek | - |
| reaksie | - |
| goeie uitsig by | Symmetry |
| werksmodus | - |
| kleurdiepte | Mono(Blue) |
| agterlig | self |
| massa | - |
| gebruik vir | Instruments & Meters |
| herlaaitempo | - |
| raakskerm | Without |
| bestuurder ic lys | Built-in COB WS0010 |
| sein tipe | CPU/SPI , Pad 16 pins |
| spanningstoevoer | 5.0V (Typ.) |
