| Onderdeel nommer | WEH002002BS |
| Handelsmerk | Winstar |
| Grootte | 5.7 |
| Toepassing | Instruments & Meters |
| Resolusie | 20×23 |
| Samestelling | PM-OLED , OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Blue) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| paneel handelsmerk | Winstar |
| paneel grootte | 5.7" |

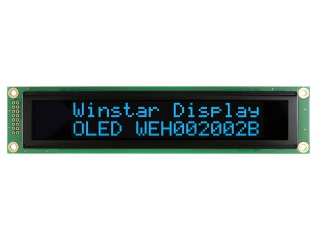

| vertoon formaat | 20 characters × 2 lines, 3PPI |
| karakter grootte | 6×9.66(W×H) mm |
| vertoon area | 145.08(W)×20.64(H) mm |
| omtrek grootte | 180(W)×40(H) ×9.3(D) mm |
| kykhoek | - |
| beste uitsig op | Symmetry |
| kleure vertoon | Mono(Blue) |
| frekwensie | - |
| bestuurder ic | COB Built-in WS0010 |
| paneel gewig | - |
| sein koppelvlak | CPU/SPI , 16 pins Pad |
| insetspanning | 5.0V (Typ.) |
| paneel model | WEH002002BS |
| paneel tipe | PM-OLED , OLED |
| lettertipe formaat | 5×8 dots |
| karakter toonhoogte | 7.32×10.98(W×H) mm |
| ring opening | 149.0(W)×23.0(H) mm |
| oppervlak | - |
| vertoonmodus | - |
| reaksie tyd | - |
| tipe lamp | self |
| raakskerm | Without |
| aansoek | Instruments & Meters |
