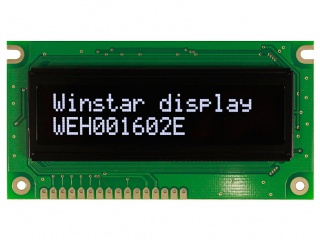

| Onderdeel nommer | WEH001602EW |
| Handelsmerk | Winstar |
| Grootte | 2.3 |
| Toepassing | Instruments & Me |
| Resolusie | 5×8 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(White) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| handelsmerk | Winstar |
| model | WEH001602EW |
| diagonale grootte | 2.3 inch |
| tipe | PM-OLED, OLED |
| char-formaat | 5×8 dots |
| skrifgrootte | 2.95×5.55 mm |
| font toonhoogte | 3.6×6.3 mm |
| aktiewe area | 56.95(H)×11.85(V) mm |
| buitelyn dof. | 84(H)×44(V) ×10(D) mm |
| ring area | 66(H)×16(V) mm |
| behandeling | - |
| kyk rigting | Symmetry |
| reaksie tyd | - |
| kykhoek | - |
| bedryfsmodus | - |
| ondersteun kleur | Mono(White) |
| Ligbron | self |
| gewig | - |
| ontwerp vir | Instruments & Meters |
| raamkoers | - |
| raakpaneel | Without |
| d-ic detail | COB Built-in WS0010 |
| koppelvlak tipe | CPU/SPI , 16 pins Pad |
| kragtoevoer | 5.0V (Typ.) |
