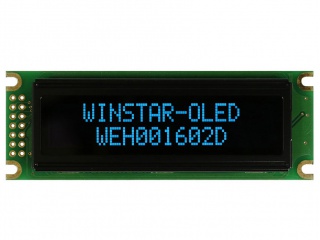

| Onderdeel nommer | WEH001602DB |
| Handelsmerk | Winstar |
| Grootte | 2.3 |
| Toepassing | Instruments & Me |
| Resolusie | 5×8 |
| Samestelling | OLED, PM-OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Blue) |
| Agterlig | self |
| Koppelvlak | |
| vervaardiger | Winstar |
| model naam | WEH001602DB |
| skerm grootte | 2.3 inch |
| tipe skerm | OLED, PM-OLED |
| char nommer | 16 characters × 2 lines 7PPI |
| char-formaat | 5×8 dots |
| char pitch (mm) | 3.6×6.3 (H×V) |
| char grootte (mm) | 2.95×5.55 (H×V) |
| aktiewe area (mm) | 56.95 × 11.85 (H×V) |
| buitelyn (mm) | 85 × 30 × 10 (H×V×D) |
| ring area (mm) | 66 × 16 (H×V) |
| behandeling | - |
| kykhoek | - |
| reaksie | - |
| goeie uitsig by | Symmetry |
| werksmodus | - |
| kleurdiepte | Mono(Blue) |
| agterlig | self |
| massa | - |
| gebruik vir | Instruments & Meters |
| herlaaitempo | - |
| raakskerm | Without |
| 5.0V (Typ.) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
