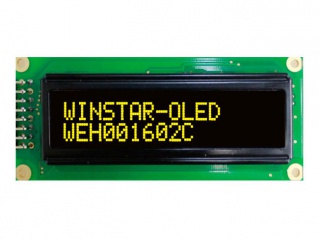

| Onderdeel nommer | WEH001602CL |
| Handelsmerk | Winstar |
| Grootte | 2.3 |
| Toepassing | Instruments & Me |
| Resolusie | 5×8 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Yellow) |
| Agterlig | self |
| Koppelvlak | |
| handelsmerk | Winstar |
| model | WEH001602CL |
| diagonale grootte | 2.3 inch |
| tipe | PM-OLED, OLED |
| char-formaat | 5×8 dots |
| skrifgrootte | 2.95×5.55 mm |
| font toonhoogte | 3.6×6.3 mm |
| aktiewe area | 56.95(H)×11.85(V) mm |
| buitelyn dof. | 85(H)×36(V) ×10(D) mm |
| ring area | 66(H)×16(V) mm |
| behandeling | - |
| kyk rigting | Symmetry |
| reaksie tyd | - |
| kykhoek | - |
| bedryfsmodus | - |
| ondersteun kleur | Mono(Yellow) |
| Ligbron | self |
| gewig | - |
| ontwerp vir | Instruments & Meters |
| raamkoers | - |
| raakpaneel | Without |
| 5.0V (Typ.) |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
