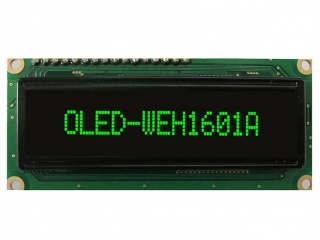

| Onderdeel nommer | WEH001601AG |
| Handelsmerk | Winstar |
| Grootte | 2.6 |
| Toepassing | Instruments & Meters |
| Resolusie | 16×17 |
| Samestelling | PM-OLED , OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Green) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| paneel handelsmerk | Winstar |
| paneel grootte | 2.6" |
| vertoon formaat | 16 characters × 1 lines, 7PPI |
| karakter grootte | 2.95×6.35(W×H) mm |
| vertoon area | 56.95(W)×6.35(H) mm |
| omtrek grootte | 80(W)×36(H) ×10(D) mm |
| kykhoek | - |
| beste uitsig op | Symmetry |
| kleure vertoon | Mono(Green) |
| frekwensie | - |
| bestuurder ic | COB Built-in WS0010 |
| paneel gewig | - |
| sein koppelvlak | CPU/SPI , 16 pins Pad |
| insetspanning | 5.0V (Typ.) |
| paneel model | WEH001601AG |
| paneel tipe | PM-OLED , OLED |
| lettertipe formaat | 5×8 dots |
| karakter toonhoogte | 3.6×6.35(W×H) mm |
| ring opening | 66(W)×16(H) mm |
| oppervlak | - |
| vertoonmodus | - |
| reaksie tyd | - |
| tipe lamp | self |
| raakskerm | Without |
| aansoek | Instruments & Meters |
