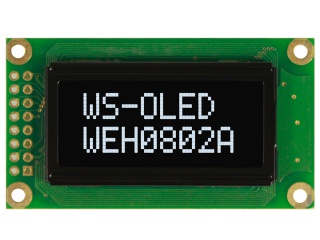

| Onderdeel nommer | WEH000802AW |
| Handelsmerk | Winstar |
| Grootte | 1.2 |
| Toepassing | Instruments & Me |
| Resolusie | 8×26 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(White) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| paneel handelsmerk | Winstar |
| paneel model | WEH000802AW |
| paneel grootte | 1.2" |
| paneel tipe | PM-OLED, OLED |
| vertoon formaat | 8 characters × 2 lines, 6PPI |
| lettertipe formaat | 5×8 dots |
| karakter grootte | 2.96×5.56(W×H) mm |
| karakter toonhoogte | 3.6×6.3(W×H) mm |
| vertoon area | 28.16(W)×11.89(H) mm |
| ring opening | 38(W)×16(H) mm |
| omtrek grootte | 58(W)×32(H) ×10(D) mm |
| oppervlak | - |
| kykhoek | - |
| vertoonmodus | - |
| beste uitsig op | Symmetry |
| reaksie tyd | - |
| kleure vertoon | Mono(White) |
| tipe lamp | self |
| frekwensie | - |
| raakskerm | Without |
| bestuurder ic | COBBuilt-in WS0010 |
| paneel gewig | - |
| aansoek | Instruments & Meters |
| sein koppelvlak | CPU/SPI , 16 pins Pad |
| insetspanning | 5.0V (Typ.) |
