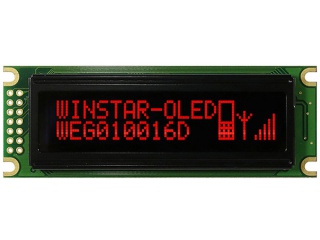

| Onderdeel nommer | WEG010016DW |
| Handelsmerk | Winstar |
| Grootte | 2.4 |
| Toepassing | Instruments & Me |
| Resolusie | 100×16 |
| Samestelling | OLED, PM-OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(White) |
| Agterlig | self |
| Koppelvlak | CPU |
| vervaardiger | Winstar |
| model naam | WEG010016DW |
| skerm grootte | 2.4 inch |
| tipe skerm | OLED, PM-OLED |
| pixel nommer | 100×16 42PPI |
| reëling | Rectangle |
| aktiewe area (mm) | 59.95 × 11.15 (H×V) |
| buitelyn (mm) | 85 × 30.5 × 10 (H×V×D) |
| ring area (mm) | 66 × 16 (H×V) |
| behandeling | - |
| kykhoek | - |
| reaksie | - |
| goeie uitsig by | Symmetry |
| werksmodus | - |
| kleurdiepte | Mono(White) |
| agterlig | self |
| massa | - |
| gebruik vir | Instruments & Meters |
| herlaaitempo | - |
| raakskerm | Without |
| bestuurder ic lys | Built-in COG WS0010 |
| sein tipe | CPU , Pad 14 pins |
| spanningstoevoer | 5.0V (Typ.) |
