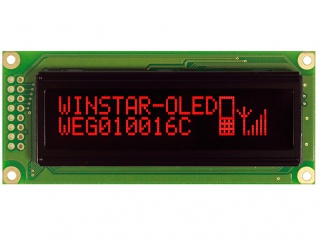

| Onderdeel nommer | WEG010016CW |
| Handelsmerk | Winstar |
| Grootte | 2.4 |
| Toepassing | Instruments & Me |
| Resolusie | 100×16 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(White) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| paneel handelsmerk | Winstar |
| paneel model | WEG010016CW |
| paneel grootte | 2.4" |
| paneel tipe | PM-OLED, OLED |
| resolusie | 100×16, 42PPI |
| pixel formaat | Rectangle |
| vertoon area | 59.95(W)×11.15(H) mm |
| ring opening | 66(W)×16(H) mm |
| omtrek grootte | 85(W)×36(H) ×10(D) mm |
| oppervlak | - |
| kykhoek | - |
| vertoonmodus | - |
| beste uitsig op | Symmetry |
| reaksie tyd | - |
| kleure vertoon | Mono(White) |
| tipe lamp | self |
| frekwensie | - |
| raakskerm | Without |
| bestuurder ic | COG Built-in WS0010 |
| paneel gewig | - |
| aansoek | Instruments & Meters |
| sein koppelvlak | CPU/SPI , 16 pins Pad |
| insetspanning | 5.0V (Typ.) |
