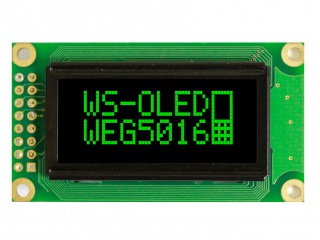

| Onderdeel nommer | WEG005016AG |
| Handelsmerk | Winstar |
| Grootte | 1.26 |
| Toepassing | Instruments & Meters |
| Resolusie | 50×16 |
| Samestelling | PM-OLED , OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Green) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| paneel handelsmerk | Winstar |
| paneel grootte | 1.26" |
| resolusie | 50×16, 41PPI |
| vertoon area | 29.96(W)×11.16(H) mm |
| omtrek grootte | 58(W)×32(H) ×10(D) mm |
| kykhoek | - |
| beste uitsig op | Symmetry |
| kleure vertoon | Mono(Green) |
| frekwensie | - |
| bestuurder ic | COB Built-in WS0010 |
| paneel gewig | - |
| sein koppelvlak | CPU/SPI , 16 pins Pad |
| insetspanning | 5.0V (Typ.) |
| paneel model | WEG005016AG |
| paneel tipe | PM-OLED , OLED |
| pixel formaat | Rectangle |
| ring opening | 38(W)×16(H) mm |
| oppervlak | - |
| vertoonmodus | - |
| reaksie tyd | - |
| tipe lamp | self |
| raakskerm | Without |
| aansoek | Instruments & Meters |
