| Onderdeel nommer | WEA012864DWPP3N00003 |
| Handelsmerk | Winstar |
| Grootte | 0.96 |
| Toepassing | Instruments & Me |
| Resolusie | 128×64 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(White) |
| Agterlig | self |
| Koppelvlak | I²C |
| paneel handelsmerk | Winstar |
| paneel model | WEA012864DWPP3N00003 |
| paneel grootte | 0.96" |
| paneel tipe | PM-OLED, OLED |
| resolusie | 128×64, 149PPI |
| pixel formaat | Rectangle |
| vertoon area | 21.74(W)×10.86(H) mm |
| ring opening | 23.94(W)×12.06(H) mm |

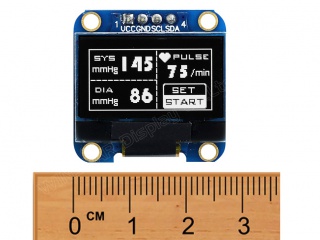

| omtrek grootte | 27.3(W)×27.3(H) ×4.37(D) mm |
| oppervlak | - |
| kykhoek | - |
| vertoonmodus | - |
| beste uitsig op | Symmetry |
| reaksie tyd | - |
| kleure vertoon | Mono(White) |
| tipe lamp | self |
| frekwensie | - |
| raakskerm | Without |
| bestuurder ic | COGBuilt-in SSD1306BZ |
| paneel gewig | - |
| aansoek | Instruments & Meters |
| sein koppelvlak | I²C , 4 pins PIN |
| insetspanning | 3.0/5.0V (Min./Max.) |
| omgewing | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
