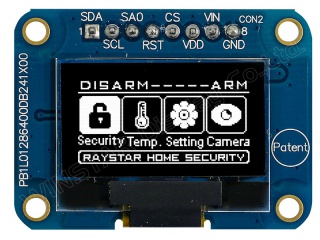

| Onderdeel nommer | WEA012864DWPP3N00001 |
| Handelsmerk | Winstar |
| Grootte | 0.96 |
| Toepassing | Instruments & Me |
| Resolusie | 128×64 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(White) |
| Agterlig | self |
| Koppelvlak | 4-wire |
| handelsmerk | Winstar |
| model | WEA012864DWPP3N00001 |
| diagonale grootte | 0.96 inch |
| tipe | PM-OLED, OLED |
| pixel formaat | 128×64 149PPI |
| konfigurasie | Rectangle |
| aktiewe area | 21.74(H)×10.86(V) mm |
| buitelyn dof. | 38(H)×28.5(V) ×4.37(D) mm |
| ring area | 23.94(H)×12.06(V) mm |
| behandeling | - |
| kyk rigting | Symmetry |
| reaksie tyd | - |
| kykhoek | - |
| bedryfsmodus | - |
| ondersteun kleur | Mono(White) |
| Ligbron | self |
| gewig | - |
| ontwerp vir | Instruments & Meters |
| raamkoers | - |
| raakpaneel | Without |

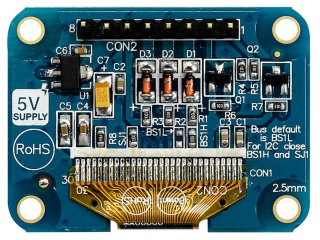

| d-ic detail | COG Built-in SSD1306BZ |
| koppelvlak tipe | 4-wire SPI, I²C , 8 pins PIN |
| kragtoevoer | 3.3/5.0/7.5V (Typ.) |
| omgewing | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C |
