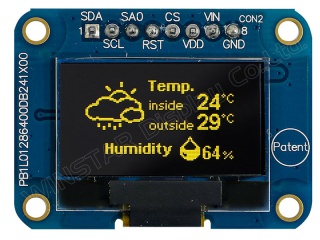

| Onderdeel nommer | WEA012864DLPP3N00001 |
| Handelsmerk | Winstar |
| Grootte | 0.96 |
| Toepassing | Instruments & Me |
| Resolusie | 128×64 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Yellow) |
| Agterlig | self |
| Koppelvlak | 4-wire |
| paneel handelsmerk | Winstar |
| paneel model | WEA012864DLPP3N00001 |
| paneel grootte | 0.96" |
| paneel tipe | PM-OLED, OLED |
| resolusie | 128×64, 149PPI |
| pixel formaat | Rectangle |
| vertoon area | 21.74(W)×10.86(H) mm |
| ring opening | 23.94(W)×12.06(H) mm |
| omtrek grootte | 38(W)×28.5(H) ×4.37(D) mm |
| oppervlak | - |
| kykhoek | - |
| vertoonmodus | - |
| beste uitsig op | Symmetry |
| reaksie tyd | - |
| kleure vertoon | Mono(Yellow) |
| tipe lamp | self |
| frekwensie | - |
| raakskerm | Without |
| bestuurder ic | COG Built-in SSD1306BZ |
| paneel gewig | - |
| aansoek | Instruments & Meters |

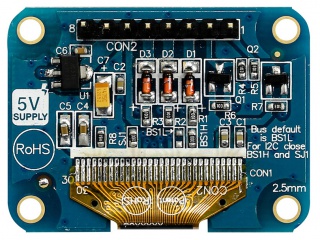

| sein koppelvlak | 4-wire SPI, I²C , 8 pins PIN |
| insetspanning | 3.3/5.0/7.5V (Typ.) |
| omgewing | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
| IROP018-010-0128064-W | Other | 0.96 | 128×64 |
| L3P10Y-81G00 | Epson | 0.96 | 1400×1050 |
| OEL9M0083-B-E | Other | 0.96 | 128×64 |
| OEL9M0083-R-E | Other | 0.96 | 128×64 |
| OEL9M0083-W-E | Other | 0.96 | 128×64 |
| RGS10096096WR001 | RiTdisplay | 0.96 | 96×96 |
| RGS10128064WR010 | RiTdisplay | 0.96 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
