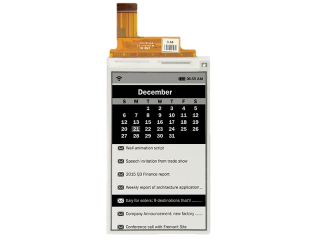

| Onderdeel nommer | VA3200-DCA |
| Handelsmerk | E Ink |
| Grootte | 4.3 |
| Toepassing | Handheld & PDA E |
| Resolusie | 480×800 |
| Samestelling | EPD , EPD |
| Helderheid | |
| CR | 12:1 |
| Kleure | Grayscale |
| Agterlig | No |
| Koppelvlak | Parallel |
| vervaardiger | E Ink |
| model naam | VA3200-DCA |
| skerm grootte | 4.3 inch |
| tipe skerm | EPD , EPD |
| pixel nommer | 480×800 (WVGA) 217PPI |
| reëling | Rectangle |
| aktiewe area (mm) | 56.16 × 93.6 (H×V) |
| buitelyn (mm) | 62.4 × 106.4 (H×V×D) |
| helderheid | - |
| kontras verhouding | 12:1 (Typ.) (RF) |
| kykhoek | - |
| reaksie | - |
| goeie uitsig by | - |
| werksmodus | - |
| kleurdiepte | Grayscale |
| agterlig | No B/L |
| massa | 12.8 |
| gebruik vir | Handheld & PDA Electronic Price Tag |
| herlaaitempo | 85Hz |
| raakskerm | Without |
| sein tipe | Parallel Data (1ch, 8-bit) , 39 pins FPC |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 50 °C |
| 43WQW4T | SII | 4.3 | 480×272 |
| BT043NHME601 | BOE | 4.3 | 360×600 |
| H430VL02 V4 | AUO | 4.3 | 480×800 |
| HSD043I9W1-B00 | HannStar | 4.3 | 480×272 |
| LB043WQ4-TD01 | LG Display | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| YX-CM043-QN05-56 | 4.3 | 480×272 |
