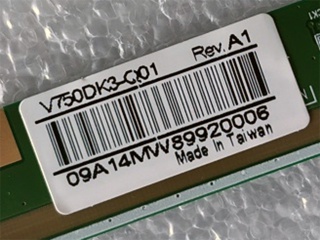

| Onderdeel nommer | V750DK3-Q01 |
| Handelsmerk | Innolux |
| Grootte | 75 |
| Toepassing | TV Sets |
| Resolusie | 3840×2160 |
| Samestelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 4000:1 |
| Kleure | 1.07B |
| Agterlig | No |
| Koppelvlak | V-by-One |
| vervaardiger | Innolux |
| skerm grootte | 75 inch |
| pixel nommer | 3840(RGB)×2160 (UHD) 59PPI |
| aktiewe area (mm) | 1650.24 × 928.26 (H×V) |
| ring area (mm) | - |
| helderheid | 0 cd/m² |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| glas dikte | 0.50+0.50 mm |
| kleurdiepte | 1.07B |
| massa | 4.98±0.25Kgs |
| herlaaitempo | 120Hz |
| bestuurder ic lys | Suggest COF 12 source chips |
| sein tipe | V-by-One 16 lane , 92 pins Connector |
| spanningstoevoer | 12V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | V750DK3-Q01 |
| tipe skerm | CELL , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 1662.89 × 942.29 × 1.47 (H×V×D) |
| behandeling | Antiglare (Haze 2%), Hard coating (2H), Reflection 2.0% (Typ.) |
| kontras verhouding | 4000 : 1 (Typ.) (TM) |
| reaksie | 6.5 (Typ.)(G to G) ms |
| werksmodus | Super MVA, Normally Black, Transmissive |
| deurlaatbaarheid | 4.8% (Typ.)(with Polarizer) |
| agterlig | No B/L |
| gebruik vir | TV Sets |
| raakskerm | Without |
