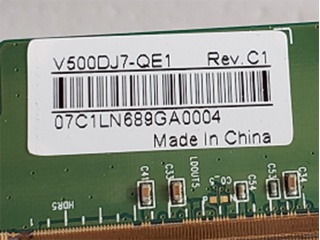

| Onderdeel nommer | V500DJ7-QE1 |
| Handelsmerk | Innolux |
| Grootte | 50 |
| Toepassing | TV Sets |
| Resolusie | 3840×2160 |
| Samestelling | a-Si TFT-LCD, CELL |
| Helderheid | |
| CR | 4000:1 |
| Kleure | 1.07B |
| Agterlig | No |
| Koppelvlak | V-by-One |
| paneel handelsmerk | Innolux |
| paneel model | V500DJ7-QE1 |
| paneel grootte | 50" |
| paneel tipe | a-Si TFT-LCD, CELL |
| resolusie | 3840(RGB)×2160, UHD, 89PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 1095.84(W)×616.41(H) mm |
| ring opening | - |
| omtrek grootte | 1106.84(W)×628.01(H) ×1.32(D) mm |
| oppervlak | Antiglare (Haze 1%), Hard coating (3H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 4000:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | Super MVA, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 9.5 (Typ.)(G to G) |
| glas diepte | - |
| deurlaatbaarheid | 5.0% (Typ.)(with Polarizer) |
| kleure vertoon | 1.07B 70% NTSC |
| tipe lamp | No B/L |
| frekwensie | 60Hz |
| raakskerm | Without |
| bestuurder ic | COF Built-in 12 source chips |
| paneel gewig | 2.11±0.20Kgs |
| aansoek | TV Sets |
| sein koppelvlak | V-by-One 8 lane , 51 pins Connector |
| insetspanning | 12.0V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
