{{handelsmerk}} V470H2-L01 datablad, spesifikasie, aandele, toepassing www.looklcd-za.com
LookLCD LookLCD

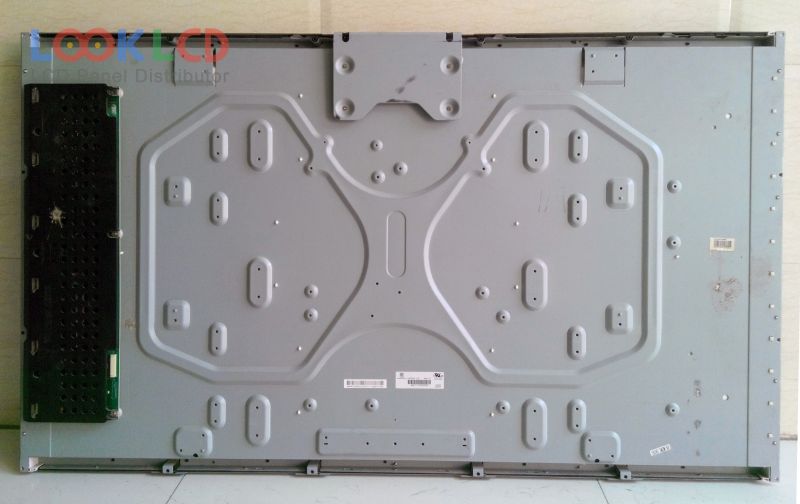

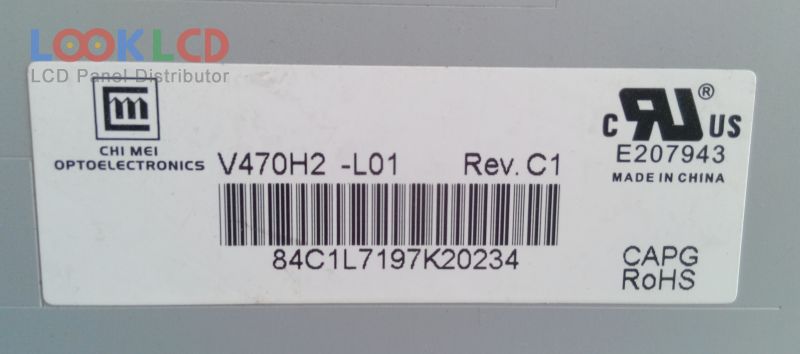

V470H2-L01

V470H2-L01
V470H2-L01
V470H2-L01 thumb V470H2-L01 thumb
Handelsmerk
Innolux
Grootte
47
Toepassing
LCTV
Resolusie
1920×1080
Samestelling
LCM
Helderheid
500
CR
4000:1
Kleure
16.7M
Agterlig
CCFL
Koppelvlak
LVDS
In Stock
6781
Spesifikasies

Onderdeel nommer V470H2-L01
HandelsmerkInnolux
Grootte47
ToepassingLCTV
Resolusie1920×1080
SamestellingLCM
Helderheid500
CR4000:1
Kleure16.7M
AgterligCCFL
KoppelvlakLVDS
paneel handelsmerkCMO
paneel modelV470H2-L01
paneel tipe a-Si TFT-LCD , LCM
paneel grootte47 inch
resolusie1920(RGB)×1080 , FHD
vertoonmodusSuper MVA, Normally Black, Transmissive
aktiewe area1039.68×584.82 mm
buitelyn1096×640 mm
oppervlakAntiglare (Haze 11%), Hard coating (3H)
helderheid500 cd/m² (Typ.)
kontras verhouding4000:1 (Typ.)
kleure vertoon16.7M (8-bit), CIE193172%
reaksie tyd6.5 (Typ.)(G to G)
kykhoek88/88/88/88 (Typ.)(CR≥20)(L/R/U/D)
frekwensie60Hz
tipe lamp12 pcsCCFLEmbedded (Inverter)
sein koppelvlakLVDS (2 ch, 8-bit), 51 pins
insetspanning12.0V (Typ.)
aansoekLCTV
