| Onderdeel nommer | TX38D14VC0CAA |
| Handelsmerk | KOE |
| Grootte | 15.0 |
| Toepassing | DMPC |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 200 |
| CR | 300:1 |
| Kleure | 16.7M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | HITACHI |
| paneel model | TX38D14VC0CAA |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 15.0 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | IPS, Normally Black, Transmissive |
| aktiewe area | 304.128×228.096 mm |
| buitelyn | 350×265 mm |
| oppervlak | |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 300:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit) |
| reaksie tyd | 25/25 (Typ.)(Tr/Td) |
| kykhoek | 80/80/80/80 (Min.)(CR≥20)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 4 pcsCCFLWithout Driver |

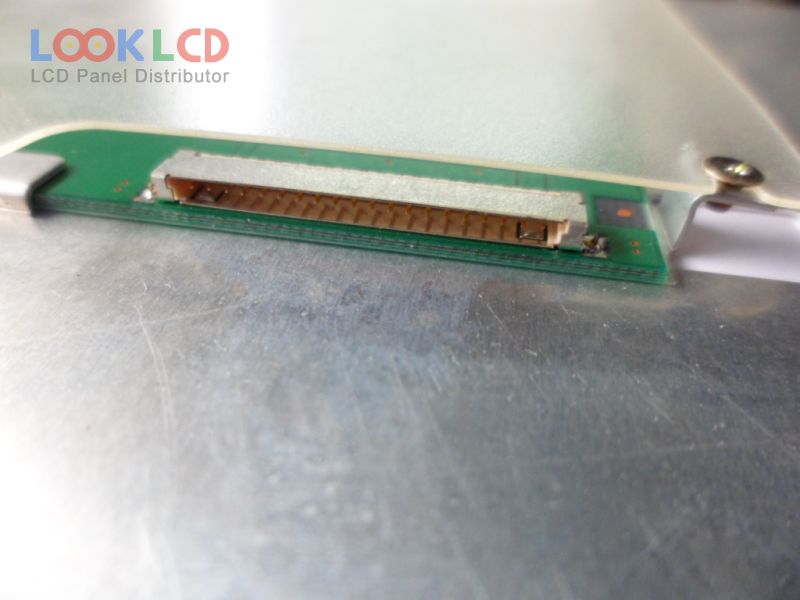

| sein koppelvlak | LVDS (1 ch, 8-bit), 20 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | DMPC |
