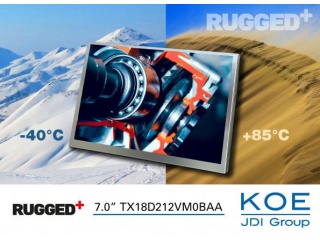

| Onderdeel nommer | TX18D212VM0BAA |
| Handelsmerk | KOE |
| Grootte | 7.0 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 1280×768 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | KOE |
| diagonale grootte | 7.0 inch |
| pixel formaat | 1280(RGB)×768 [WXGA] 213PPI |
| aktiewe area | 152.448(H)×91.4688(V) mm |
| ring area | 154.5(H)×93.5(V) mm |
| helderheid | 1000 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 72% NTSC |
| gewig | 212g (Typ.) |
| raamkoers | 60Hz |
| model | TX18D212VM0BAA |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 164.4(H)×105(V) ×13.5(D) mm |
| behandeling | - |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| reaksie tyd | 25 (Max.)(Tr+Tf) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| Ligbron | WLED , 50K hours , With LED Driver |
| ontwerp vir | Industrial Outdoor High Brightness |
| raakpaneel | Without |
