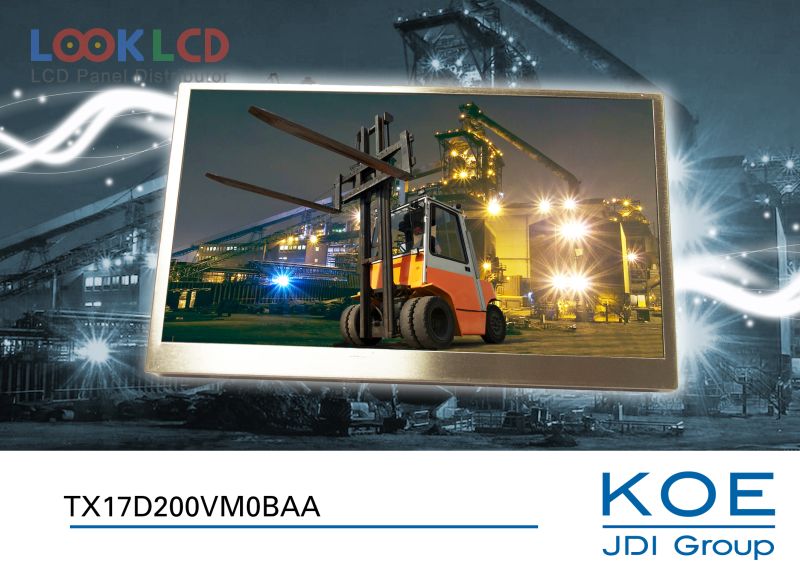

| Onderdeel nommer | TX17D200VM0BAA |
| Handelsmerk | KOE |
| Grootte | 6.5 |
| Toepassing | IA |
| Resolusie | 800×480 |
| Samestelling | LCM |
| Helderheid | 700 |
| CR | 600:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | KOE |
| paneel model | TX17D200VM0BAA |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 6.5 inch |
| resolusie | 800(RGB)×480 , WVGA |
| vertoonmodus | IPS, Normally Black, Transmissive |
| aktiewe area | 144×78.24 mm |
| buitelyn | 154.8×92.7×10.7 mm |
| oppervlak | |
| helderheid | 700 cd/m² (Typ.) |
| kontras verhouding | 600:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193156% |
| reaksie tyd | 45 (Max.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 3S5PWLEDEmbedded (LED Driver) |
| sein koppelvlak | CMOS (1 ch, 6-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | IA |
| C065GW01 V0 | AUO | 6.5 | 400×234 |
| C065VL01 V0 | AUO | 6.5 | 800×480 |
| DJ065NA-01C | Innolux | 6.5 | |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LQ065T5GG63 | SHARP | 6.5 | 400×234 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| NL6448BC20-30F | NLT | 6.5 | 640×480 |
| T-51750GD065J-FW-ADN | Kyocera | 6.5 | 640×480 |
| TX17D200VM0BAA | KOE | 6.5 | 800×480 |
| AA121XH01 | Mitsubishi | 12.1 | 1024×768 |
| DLC0570BDG-3 | Other | 5.7 | 640×480 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| G150XTN01.1 | AUO | 15.0 | 1024×768 |
| G240UAN01.0 | AUO | 24.0 | 1920×1200 |
| KCS072VG1MB-G42 | Kyocera | 7.2 | 640×480 |
| LC064N1 | LG Display | 6.4 | 640×480 |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| M101GWN9 R2 | IVO | 10.1 | 1024×600 |
| TX18D30VM2FAA | KOE | 7.0 | 800×480 |
