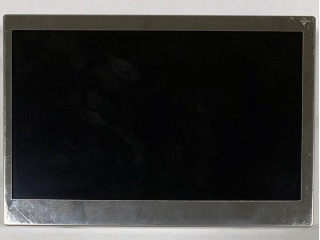

| Onderdeel nommer | TX11D201VM0BAA |
| Handelsmerk | KOE |
| Grootte | 4.2 |
| Toepassing | Automotive Display |
| Resolusie | 480×272 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| handelsmerk | KOE |
| model | TX11D201VM0BAA |
| diagonale grootte | 4.2 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 480(RGB)×272 [WQVGA] 131PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 92.88(H)×52.632(V) mm |
| buitelyn dof. | 102.5(H)×69(V) ×15.5(D) mm |
| ring area | 95.28(H)×55.07(V) mm |
| behandeling | Antiglare, Hard coating (2H) |
| helderheid | 750 cd/m² (Typ.) |
| kontras verhouding | 1500:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 65% NTSC |
| Ligbron | WLED [6S1P] , 50K hours , With LED Driver |
| gewig | 97.0g (Typ.) |
| ontwerp vir | Automotive Display |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | Parallel RGB (1 ch, 8-bit) , 68 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
