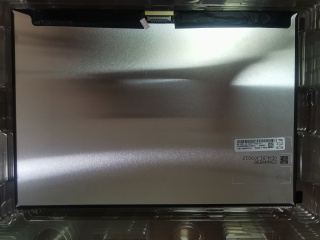

| Onderdeel nommer | TV123WAM-ND1 |
| Handelsmerk | BOE |
| Grootte | 12.3 |
| Toepassing | Pad & Tablet |
| Resolusie | 1920×1280 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | BOE |
| paneel grootte | 12.3" |
| resolusie | 1920(RGB)×1280, 188PPI |
| vertoon area | 259.2(W)×172.8(H) mm |
| helderheid | - |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M |
| frekwensie | 60Hz |
| gewig | - |
| paneel model | TV123WAM-ND1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| kontras verhouding | 1200:1 (Typ.) (TM) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| tipe lamp | WLED |
| raakskerm | Without |
| aansoek | Pad & Tablet |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
