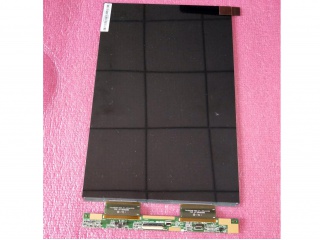

| Onderdeel nommer | TV106WAB-NS0 |
| Handelsmerk | BOE |
| Grootte | 10.6 |
| Toepassing | Pad & Tablet |
| Resolusie | 1280×1920 |
| Samestelling | a-Si TFT-LCD, CELL |
| Helderheid | |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | |
| handelsmerk | BOE |
| model | TV106WAB-NS0 |
| diagonale grootte | 10.6 inch |
| tipe | a-Si TFT-LCD, CELL |
| pixel formaat | 1280(RGB)×1920 218PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 148.992(H)×223.488(V) mm |
| buitelyn dof. | 153.392(H)×232.688(V) ×0.79(D) mm |
| ring area | - |
| behandeling | Hard coating (3H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 900:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | ADS, Normally Black, Transmissive |
| plaat dikte | 0.25+0.25 mm |
| oordrag | - |
| ondersteun kleur | 16.7M 71% NTSC |
| Ligbron | No B/L , W/O Driver |
| gewig | 62.0g (Max.) |
| ontwerp vir | Pad & Tablet |
| raamkoers | 60Hz |
| raakpaneel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
