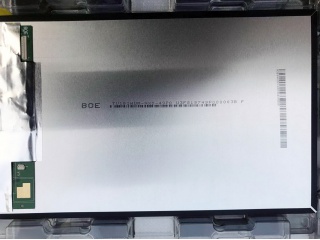

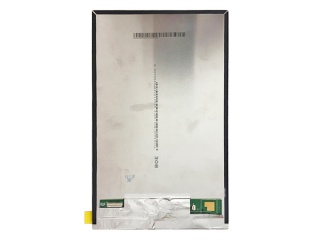

| Onderdeel nommer | TV101WUM-NX0 |
| Handelsmerk | BOE |
| Grootte | 10.1 |
| Toepassing | Pad & Tablet |
| Resolusie | 1200×1920 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | 8S4P |
| Koppelvlak | |
| paneel handelsmerk | BOE |
| paneel grootte | 10.1" |
| resolusie | 1200(RGB)×1920, WUXGA, 225PPI |
| vertoon area | 135.36(W)×216.576(H) mm |
| omtrek grootte | 141.5(W)×227.31(H) mm |
| helderheid | 450 cd/m² (Typ.) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 100% sRGB |
| frekwensie | 60Hz |
| gewig | 105g (Typ.) |
| paneel model | TV101WUM-NX0 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Clear, Hard coating |
| kontras verhouding | 900:1 (Typ.) (TM) |
| vertoonmodus | HADS, Normally Black, Transmissive |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| tipe lamp | 8S4P WLED , Without Driver |
| raakskerm | Without |
| aansoek | Pad & Tablet |
| B101EAN01.3 | AUO | 10.1 | 1280×800 |
| B101EAN01.4 | AUO | 10.1 | 1280×800 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| LP101WH1-TLB1 | LG Display | 10.1 | 1366×768 |
| LP101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| N101BCG-L21 | Innolux | 10.1 | 1366×768 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
