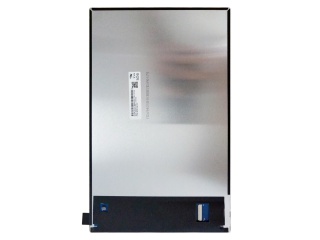

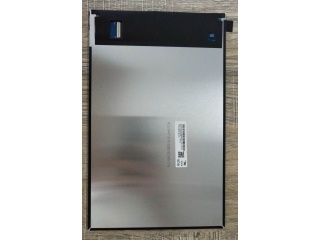

| Onderdeel nommer | TV101WUM-NL1 |
| Handelsmerk | BOE |
| Grootte | 10.1 |
| Toepassing | Pad & Tablet |
| Resolusie | 1200×1920 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 8S4P |
| Koppelvlak | MIPI |
| vervaardiger | BOE |
| model naam | TV101WUM-NL1 |
| skerm grootte | 10.1 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1200(RGB)×1920 (WUXGA) 225PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 135.36 × 216.576 (H×V) |
| buitelyn (mm) | 142.96 × 227.926 × 3.8 (H×V×D) |
| ring area (mm) | - |
| behandeling | Anti Fingerprint + Clear, Hard coating |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 30 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | HADS, Normally Black, Transmissive |
| kleurdiepte | 16.7M 98% sRGB |
| agterlig | 8S4P WLED , 15K hours , No Driver |
| massa | 105g (Typ.) |
| gebruik vir | Pad & Tablet |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | MIPI (4 data lanes) , Connector 45 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
