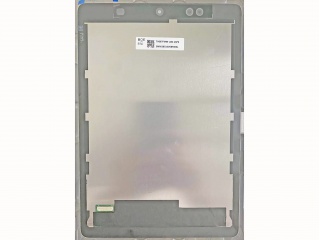

| Onderdeel nommer | TV097FMM-LB0-1SP0 |
| Handelsmerk | BOE |
| Grootte | 9.7 |
| Toepassing | Pad & Tablet |
| Resolusie | 1280×1752 |
| Samestelling | a-Si TFT-LCD , Assem |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| handelsmerk | BOE |
| diagonale grootte | 9.7 inch |
| pixel formaat | 1280(RGB)×1752 223PPI |
| aktiewe area | 145.344(H)×198.94(V) mm |
| ring area | - |
| helderheid | 320 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 70% NTSC |
| gewig | 115g (Max.) |
| raamkoers | 60Hz |
| koppelvlak tipe | MIPI (4 data lanes) , 45 pins Connector |
| kragtoevoer | 1.8/5.7/-5.7V (Typ.)(VDD/AVDD/AVEE) |
| omgewing | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| model | TV097FMM-LB0-1SP0 |
| tipe | a-Si TFT-LCD , Assembly |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 150.344(H)×208.29(V) mm |
| behandeling | Clear, Hard coating |
| kontras verhouding | 1200:1 (Typ.) (TM) |
| reaksie tyd | 35 (Max.)(G to G) |
| bedryfsmodus | - |
| Ligbron | WLED [9S4P] , 15K hours , W/O Driver |
| ontwerp vir | Pad & Tablet |
| raakpaneel | In-Cell Touch |
