| Onderdeel nommer | TV080WXM-LL3 |
| Handelsmerk | BOE |
| Grootte | 8.0 |
| Toepassing | Pad & Tablet |
| Resolusie | 800×1280 |
| Samestelling | a-Si TFT-LCD, Assemb |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| handelsmerk | BOE |
| model | TV080WXM-LL3 |
| diagonale grootte | 8.0 inch |
| tipe | a-Si TFT-LCD, Assembly |
| pixel formaat | 800(RGB)×1280 [WXGA] 188PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 107.64(H)×172.224(V) mm |
| buitelyn dof. | 116.9(H)×194.17(V) ×5.35(D) mm |
| ring area | - |
| behandeling | Clear, Hard coating |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 30(Typ.)(Tr+Td) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| bedryfsmodus | ADS, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 60% NTSC |
| Ligbron | WLED [5S4P] , W/O Driver |
| gewig | 150g (Typ.) |
| ontwerp vir | Pad & Tablet |
| raamkoers | 60Hz |
| raakpaneel | PCAP |

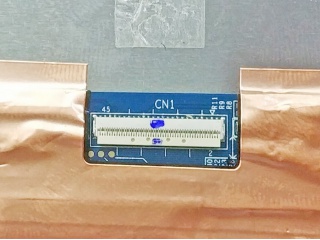

| koppelvlak tipe | MIPI (4 data lanes) , 45 pins Connector |
| kragtoevoer | 1.8/6.0/-6.0/19/-11V (Typ.)(VDDI/AVDD/AVEE/VGH/VGL) |
| omgewing | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
