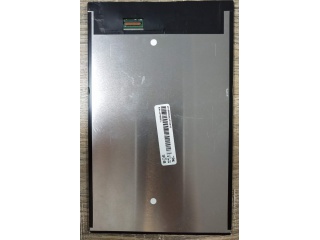

| Onderdeel nommer | TV080WUM-NK0 |
| Handelsmerk | BOE |
| Grootte | 8.0 |
| Toepassing | Pad & Tablet |
| Resolusie | 1200×1920 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 850:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| handelsmerk | BOE |
| model | TV080WUM-NK0 |
| diagonale grootte | 8.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1200(RGB)×1920 [WUXGA] 283PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 107.64(H)×172.224(V) mm |
| buitelyn dof. | - |
| helderheid | - |
| kontras verhouding | 850:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | ADS, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 63% NTSC |
| Ligbron | WLED |
| gewig | - |
| ontwerp vir | Pad & Tablet |
| raamkoers | 60Hz |
| raakpaneel | - |
| koppelvlak tipe | MIPI (4 data lanes) , 39 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| B080UAN01.2 | AUO | 8.0 | 1200×1920 |
| CLAA080LG01CW | CPT | 8.0 | 800×480 |
| L5F30614T64 | SANYO | 8.0 | 800×480 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LSL080AL02-002 | Samsung | 8.0 | 800×1280 |
| N080XCG-L21 | Innolux | 8.0 | 1024×768 |
| PW080XU1 | E Ink | 8.0 | 480×220 |
| TM080VG-22L01 | SANYO | 8.0 | 640×480 |
| TV080WXM-NL0 | BOE | 8.0 | 800×1280 |
