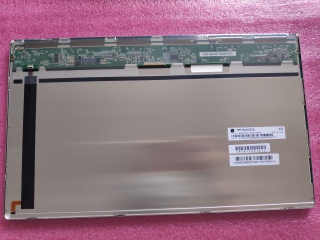

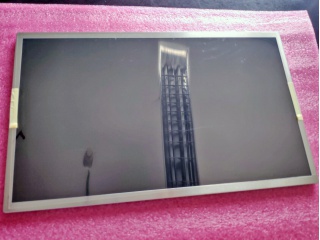

| Onderdeel nommer | TM156VDSG16 |
| Handelsmerk | TIANMA |
| Grootte | 15.6 |
| Toepassing | Industrial |
| Resolusie | 1920×1080 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| vervaardiger | TIANMA |
| skerm grootte | 15.6 inch |
| pixel nommer | 1920(RGB)×1080 (FHD) 141PPI |
| aktiewe area (mm) | 344.16 × 193.59 (H×V) |
| ring area (mm) | 347.55 × 196.75 (H×V) |
| helderheid | 400 (Typ.)(cd/m²) |
| kykhoek | 88/88/88/88 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 72% NTSC |
| massa | 610g (Typ.) |
| herlaaitempo | 60Hz |
| model naam | TM156VDSG16 |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 363.8 × 215.9 × 6.8 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| werksmodus | SFT, Normally Black, Transmissive |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| agterlig | WLED , 50K hours , With LED Driver |
| gebruik vir | Industrial |
| raakskerm | Without |
