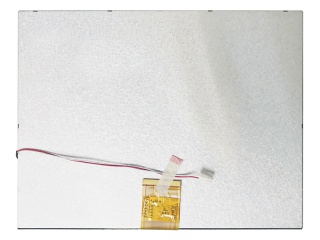

| Onderdeel nommer | TM104SDHG30-71 |
| Handelsmerk | TIANMA |
| Grootte | 10.4 |
| Toepassing | Industrial Automotiv |
| Resolusie | 800×600 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K/16.2M |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| handelsmerk | TIANMA |
| model | TM104SDHG30-71 |
| diagonale grootte | 10.4 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×600 [SVGA] 96PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 211.2(H)×158.4(V) mm |
| buitelyn dof. | 228.4(H)×175.4(V) ×6.5(D) mm |
| ring area | 214.2(H)×162.5(V) mm |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kyk rigting | 12 o'clock |
| reaksie tyd | 10/15 (Typ.)(Tr/Td) |
| kykhoek | 70/70/60/70 (Typ.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 262K/16.2M 50% NTSC |
| Ligbron | WLED [3S12P] , 30K hours , W/O Driver |
| gewig | 360g |
| ontwerp vir | Industrial Automotive Display |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| kragtoevoer | 3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
