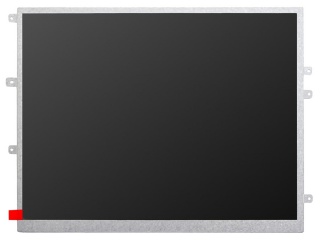

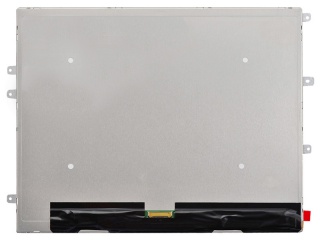

| Onderdeel nommer | TM097TDHG04-62 |
| Handelsmerk | TIANMA |
| Grootte | 9.7 |
| Toepassing | Pad & Tablet Industr |
| Resolusie | 1024×768 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | TIANMA |
| diagonale grootte | 9.7 inch |
| pixel formaat | 1024(RGB)×768 [XGA] 132PPI |
| aktiewe area | 196.608(H)×147.456(V) mm |
| ring area | 200.91(H)×152.27(V) mm |
| helderheid | 350 cd/m² (Typ.) |
| kyk rigting | 12 o'clock |
| kykhoek | 70/70/60/70 (Typ.)(CR≥10) |
| ondersteun kleur | 262K 50% NTSC |
| gewig | 200g (Typ.) |
| raamkoers | 60Hz |
| koppelvlak tipe | LVDS (1 ch, 6-bit) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | TM097TDHG04-62 |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 210.2(H)×166.3(V) ×6.5(D) mm |
| behandeling | Clear |
| kontras verhouding | 500:1 (Typ.) (TM) |
| reaksie tyd | 20/25 (Typ./Max.)(Tr+Td) |
| bedryfsmodus | TN, Normally White, Transmissive |
| Ligbron | WLED [6S6P] , 30K hours , W/O Driver |
| ontwerp vir | Pad & Tablet Industrial |
| raakpaneel | Without |
