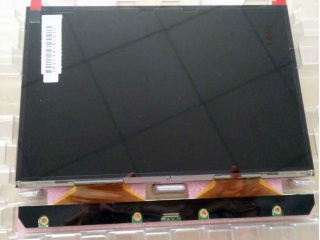

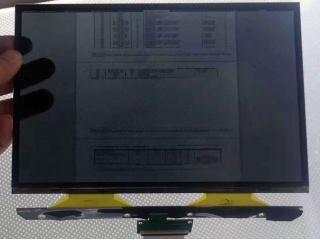

| Onderdeel nommer | TM089CFSP01 |
| Handelsmerk | TIANMA |
| Grootte | 8.9 |
| Toepassing | 3D Printer |
| Resolusie | 3840×2400 |
| Samestelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 800:1 |
| Kleure | Monochrome |
| Agterlig | No |
| Koppelvlak | |
| paneel handelsmerk | TIANMA |
| paneel grootte | 8.9" |
| resolusie | 3840×2400, 508PPI |
| vertoon area | 192(W)×120(H) mm |
| omtrek grootte | 202(W)×133(H) ×1.24(D) mm |
| helderheid | 0 cd/m² |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| glas diepte | - |
| kleure vertoon | Monochrome |
| frekwensie | 60Hz |
| gewig | TBD |
| paneel model | TM089CFSP01 |
| paneel tipe | a-Si TFT-LCD , CELL |
| pixel formaat | Rectangle |
| ring opening | - |
| oppervlak | Clear |
| kontras verhouding | 800:1 (Typ.) (TM) |
| vertoonmodus | SFT, Normally Black, Transmissive |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| deurlaatbaarheid | 5.4% (Typ.)(with Polarizer) |
| tipe lamp | No B/L |
| raakskerm | Without |
| aansoek | 3D Printer |
| A089SW01 V0 | AUO | 8.9 | 1024×600 |
| HSD089IFW1-B00 | HannStar | 8.9 | 1024×600 |
| HSD089IFW3-A00 | HannStar | 8.9 | 1024×600 |
| HT089WX1-100 | HYDIS | 8.9 | 1280×768 |
| HV089WX1-100 | HYDIS | 8.9 | 1280×768 |
| KCG089HV1AA-G00 | Kyocera | 8.9 | 640×240 |
| LP089WS1-TLA1 | LG Display | 8.9 | 1024×600 |
| LP089WS2-TLB1 | LG Display | 8.9 | 1024×600 |
| LSUGC202XA | ALPS | 8.9 | 640×240 |
| NL12876BC15-01 | NLT | 8.9 | 1280×768 |
